Learn everything about sewage treatment plants – their working process, types, technologies, and environmental impact. Complete guide with diagrams and infographics for 2025.
A sewage treatment plant (STP) is a sophisticated facility designed to process wastewater from residential, commercial, and industrial sources. These plants serve as the backbone of modern sanitation infrastructure, transforming contaminated water into clean, safe effluent that can be safely released into the environment or reused for various purposes.
The primary function of an STP extends beyond mere waste disposal. These facilities act as comprehensive water purification systems, removing harmful contaminants including:
- Organic matter – Decomposing waste that depletes oxygen
- Suspended solids – Particles that cause turbidity
- Nutrients – Nitrogen and phosphorus that cause eutrophication
- Pathogens – Bacteria, viruses, and parasites
- Toxic substances – Heavy metals and chemicals
Key Statistics About Global Sewage Treatment
| Statistic | Value | Impact |
|---|---|---|
| Global Untreated Wastewater | 80% | Environmental pollution |
| People Lacking Safe Water | 2.2 Billion | Public health crisis |
| Industrial Water Recyclable | 70% | Resource conservation |
| Treatment Efficiency | 90%+ | Pollution prevention |
💡 Did You Know? Singapore’s NEWater program treats wastewater to such high standards that it provides 40% of the country’s water supply, demonstrating the potential for advanced water reuse technologies.
How Sewage Treatment Plants Work: Complete Process Flow
The sewage treatment process is a carefully orchestrated sequence of physical, biological, and chemical operations designed to progressively remove contaminants and purify wastewater.
Visual Process Flow Diagram
How Sewage Treatment Plants Work: Complete Process Flow
The sewage treatment process is a carefully orchestrated sequence of physical, biological, and chemical operations designed to progressively remove contaminants and purify wastewater. Let’s break down each stage:
Stage 1: Preliminary Treatment – The First Line of Defense
Purpose: Remove large debris and protect downstream equipment
This initial stage acts like a giant strainer, catching all the big stuff that shouldn’t be in the water system:
- Screening: Large filters catch rags, plastics, and solid waste
- Grit Removal: Heavy particles like sand and gravel settle out
- Flow Equalization: Balances the incoming water flow rates
Performance: Removes 5-15% of total pollutants
Think of this stage as cleaning your kitchen sink strainer – it catches the obvious stuff but doesn’t make the water clean yet.
Stage 2: Primary Treatment – The Settling Process
Purpose: Remove suspended solids and organic matter through natural settling
This stage is where gravity does most of the work:
- Retention Time: Water sits for 1.5 to 2.5 hours in large tanks

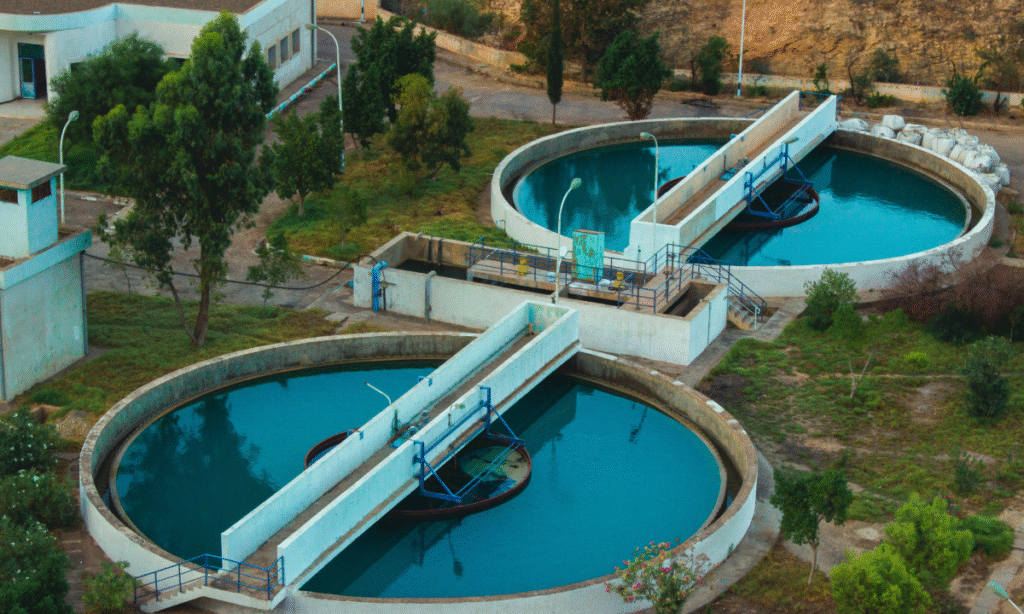

- Primary Clarifiers: Massive settling tanks where heavier particles sink
- Sludge Collection: Bottom scrapers collect the settled waste
- Scum Removal: Surface equipment removes floating materials like oils
Performance Results:
- Suspended Solids Removal: 50-70%
- BOD (Biological Oxygen Demand) Removal: 25-40%
- Oil & Grease Removal: 65-80%
Stage 3: Secondary Treatment – The Biological Powerhouse
Purpose: Use helpful bacteria to eat up remaining organic matter
This is where the magic happens! Millions of tiny bacteria work 24/7 to clean the water:
Activated Sludge Process (Most Common Method)
- Aeration Tanks: Air is bubbled through the wastewater
- Microorganisms: Aerobic bacteria consume organic pollutants
- Secondary Clarifiers: Separate clean water from the bacteria
- Return Activated Sludge: Recycles the helpful bacteria back to work
Alternative Methods
- Trickling Filters: Wastewater flows over rock beds covered with bacteria
- Rotating Biological Contactors: Spinning discs with bacterial films
- Sequencing Batch Reactors: Batch treatment in timed cycles
Performance Results:
- BOD Removal: 85-95%
- Suspended Solids Removal: 85-95%
- Ammonia Removal: 85-95%
Stage 4: Tertiary Treatment – The Final Polish
Purpose: Final cleaning and disinfection to meet strict discharge standards
This advanced stage includes several high-tech processes:
- Sand Filtration: Removes tiny particles
- Membrane Filtration: Ultra-fine filters catch microscopic contaminants
- Activated Carbon: Absorbs dissolved chemicals
- UV Disinfection: Kills harmful bacteria and viruses without chemicals
- Chlorination: Chemical disinfection method
- Ozonation: Advanced oxidation process
Performance Results:
- BOD Removal: 95-99%
- Pathogen Removal: 99.9-99.99%
- Nutrient Removal: 90%+
Sludge Management – Dealing with the Leftovers
All that removed waste has to go somewhere! The sludge management process includes:
- Thickening: Reduces water content in sludge
- Stabilization: Bacteria break down organic matter
- Conditioning: Chemical treatment prepares sludge for dewatering
- Dewatering: Removes more water using presses or centrifuges
- Final Disposal: Land application, incineration, or safe landfill disposal
Bonus: Anaerobic digestion produces methane-rich biogas that can generate electricity!
Types of Sewage Treatment Plants: Choosing the Right System
Comprehensive Comparison of STP Types
| Type | Capacity Range | Application | Key Features | Advantages | Disadvantages |
|---|---|---|---|---|---|
| Package STPs | 5-500 KLD | Residential, Small Commercial | Compact, Pre-engineered | Easy installation, Cost-effective | Limited capacity expansion |
| Municipal STPs | 1-1000+ MLD | Cities, Large Communities | Centralized, High capacity | Economies of scale, Advanced treatment | High infrastructure cost |
| Industrial STPs | Variable | Factories, Manufacturing | Specialized treatment | Customized for specific waste | Complex operation |
| Decentralized STPs | 1-100 KLD | Rural areas, Remote locations | On-site treatment | Reduced infrastructure, Local control | Higher per-unit costs |
Centralized vs. Decentralized Systems
Centralized Systems
Advantages:
- Lower per-unit treatment costs due to economies of scale
- Advanced treatment technologies possible
- Professional operation and maintenance
- Better regulatory oversight
Disadvantages:
- High capital investment for sewer networks
- Vulnerable to system-wide failures
- Long payback periods
- Environmental impact of large facilities
Decentralized Systems
Advantages:
- Reduced infrastructure requirements
- Local control and ownership
- Resilience against system failures
- Faster implementation
Disadvantages:
- Higher per-unit operational costs
- Limited treatment sophistication
- Maintenance challenges
- Potential for system neglect
Specialized Treatment Plant Types
1. Extended Aeration Systems
- Best For: Small communities (100-2000 people)
- Technology: Long aeration periods with low loading rates
- Benefits: Stable operation, minimal sludge production
2. Oxidation Ditches
- Best For: Small to medium communities
- Technology: Continuous loop reactor with surface aerators
- Benefits: Simple operation, excellent nutrient removal
3. Lagoon Systems
- Best For: Rural communities with available land
- Technology: Natural biological treatment in ponds
- Benefits: Low cost, minimal energy requirements
4. Constructed Wetlands
- Best For: Small communities, polishing applications
- Technology: Engineered wetland systems
- Benefits: Natural appearance, wildlife habitat, low energy
Advanced Treatment Technologies: The Future of Water Treatment
Membrane Technologies
Membrane Bioreactors (MBR)
How It Works: Combines biological treatment with membrane filtration
Key Benefits:
- Superior effluent quality that meets strict reuse standards
- 50% smaller footprint than conventional systems
- Consistent performance regardless of conditions
- 50-80% less excess sludge production
Applications:
- Water reuse projects
- Space-constrained installations
- Strict discharge requirements
- Industrial wastewater treatment
Reverse Osmosis (RO)
Technology: Pressure-driven membrane separation
Performance:
- Salt Removal: 95-99%
- Organic Removal: 90-95%
- Pathogen Removal: >99.99%
Biological Treatment Innovations
Moving Bed Biofilm Reactors (MBBR)
Technology: Plastic carriers provide surface for bacteria growth
Advantages:
- 5-10 times higher treatment capacity than conventional systems
- Resilient to shock loads
- Easy retrofitting of existing plants
- Compact design
Sequencing Batch Reactors (SBR)
Operation: Batch treatment with timed cycles
- Fill Phase: Wastewater addition
- React Phase: Biological treatment
- Settle Phase: Solids separation
- Decant Phase: Clean water removal
Benefits:
- Flexible operation with adjustable cycle times
- Excellent nitrogen and phosphorus removal
- Simple single reactor operation
Advanced Oxidation Processes (AOP)
Ozone Treatment
Applications:
- Removes micropollutants
- Eliminates color and odor
- Enhanced disinfection
- Destroys pharmaceutical compounds
UV/Hydrogen Peroxide
Process: Generates powerful hydroxyl radicals for pollutant destruction
Targets:
- Endocrine disrupting compounds
- Pharmaceutical residues
- Persistent organic pollutants
Environmental Impact and Sustainability Benefits
Environmental Protection
Water Quality Protection
- Oxygen Depletion Prevention: Removes substances that consume dissolved oxygen
- Eutrophication Control: Eliminates excess nutrients causing harmful algal blooms
- Toxic Substance Removal: Captures heavy metals and chemical pollutants
- Pathogen Elimination: Prevents waterborne disease transmission
Ecosystem Preservation
- Aquatic Life Protection: Maintains suitable water quality for fish and wildlife
- Wetland Conservation: Reduces pollution loads to sensitive ecosystems
- Groundwater Protection: Prevents contamination of underground water sources
- Marine Environment: Protects coastal waters from pollution
Resource Recovery Opportunities
Energy Recovery Potential
| Source | Energy Type | Potential | Implementation |
|---|---|---|---|
| Biogas from Sludge | Methane | 60% of plant energy needs | Anaerobic digesters |
| Heat Recovery | Thermal | 30% heating demand | Heat exchangers |
| Hydropower | Mechanical | Site-specific | Micro-turbines |
| Solar Integration | Electrical | 20-40% power needs | Roof-mounted panels |
Nutrient Recovery
Phosphorus Recovery:
- Global Significance: Phosphate rock reserves are declining
- Recovery Methods: Struvite precipitation, ash recovery
- Market Value: $500-800 per ton of recovered phosphorus
- Leading Countries: Germany and Netherlands
Nitrogen Recovery:
- Process: Ammonia stripping and recovery
- Applications: Fertilizer production, chemical industry
- Environmental Benefit: Reduces need for energy-intensive processes
Water Reuse Applications
Quality Standards for Different Uses
| Application | BOD (mg/L) | TSS (mg/L) | Turbidity (NTU) | Coliform (CFU/100mL) |
|---|---|---|---|---|
| Unrestricted Irrigation | <10 | <5 | <2 | <2.2 |
| Industrial Process | <30 | <30 | <10 | <200 |
| Groundwater Recharge | <10 | <5 | <2 | Non-detectable |
| Potable Reuse | <5 | <2 | <0.1 | Non-detectable |
Global Success Stories and Case Studies
Singapore’s Integrated Water Strategy
Overview: Comprehensive water security through advanced treatment
Key Features:
- NEWater Program: Advanced membrane treatment producing high-grade reclaimed water
- Capacity: 40% of current water demand, planned 55% by 2060
- Technology: Microfiltration, reverse osmosis, UV disinfection
- Public Acceptance: Extensive education and transparency programs
Results:
- Water independence with reduced reliance on imported water
- $1 billion annual savings
- Reduced environmental impact from marine discharge
Netherlands Circular Economy Model
Innovation Focus: Resource recovery and energy neutrality
Key Achievements:
- 70% of treatment plants are energy self-sufficient
- 85% phosphorus recovery rate
- 60% of treatment plants produce renewable energy
- 100% beneficial reuse of sludge as fertilizer or energy
Japan’s Decentralized Approach
Johkasou Systems: On-site treatment for rural areas
Features:
- Individual household treatment units
- Community systems for neighborhoods
- Advanced biological treatment in compact units
- Strict performance standards and regular inspection
Impact:
- 95% rural population coverage
- Consistent achievement of discharge standards
- Lower infrastructure investment than centralized systems
Economic Considerations and Cost Analysis
Cost Breakdown by Technology
Capital Cost (USD per m³/day capacity)
| Technology | Small Scale (<1 MLD) | Medium Scale (1-10 MLD) | Large Scale (>10 MLD) |
|---|---|---|---|
| Activated Sludge | $800-1,200 | $600-900 | $400-700 |
| Extended Aeration | $700-1,000 | $500-800 | $350-600 |
| MBR | $1,200-1,800 | $900-1,400 | $700-1,200 |
| SBR | $600-900 | $450-700 | $300-550 |
| Trickling Filter | $500-800 | $350-600 | $250-450 |
| Lagoon System | $200-400 | $150-300 | $100-250 |
Operating Cost (USD per m³ treated)
| Technology | Energy | Labor | Chemicals | Total O&M |
|---|---|---|---|---|
| Activated Sludge | $0.08-0.12 | $0.10-0.15 | $0.05-0.08 | $0.25-0.40 |
| Extended Aeration | $0.10-0.15 | $0.08-0.12 | $0.03-0.05 | $0.25-0.35 |
| MBR | $0.15-0.25 | $0.08-0.12 | $0.08-0.12 | $0.35-0.55 |
| SBR | $0.08-0.12 | $0.06-0.10 | $0.04-0.06 | $0.20-0.30 |
| Lagoon System | $0.02-0.05 | $0.03-0.05 | $0.01-0.02 | $0.08-0.15 |
Financing Options
Traditional Public Financing
- Municipal Bonds: 3-6% interest rates for investment-grade municipalities
- Government Grants: 50-90% subsidies for developing country projects
- State Revolving Funds: Low-interest loans for water infrastructure
Public-Private Partnerships (PPP)
- Design-Build-Operate: 15-25 year contracts with performance payments
- Build-Own-Operate-Transfer: Private ownership during concession period
Future Trends and Innovations
Digital Transformation and Smart Systems
Artificial Intelligence Applications
- Process Optimization: AI algorithms optimize aeration and chemical dosing
- Energy Management: Machine learning reduces energy consumption by 15-25%
- Predictive Maintenance: Sensor data predicts equipment failures
- Quality Control: Real-time optimization of treatment processes
Success Examples
- Danish water companies save 20% energy with AI-controlled aeration
- Singapore uses digital twins for system optimization
- Thames Water UK reduces operational costs by £30 million annually with AI
Circular Economy Integration
Resource Recovery Technologies
Biorefinery Concepts: Treat wastewater as resource stream
- Bioplastics from organic waste
- Biogas methane for energy
- Biohydrogen from advanced processes
- Single-cell protein for animal feed
Critical Material Recovery:
- Rare earth elements from industrial wastewater
- Precious metals from electronic industry waste
- Lithium from battery manufacturing waste
- Cellulose from textile industry waste
Climate Resilience and Adaptation
Extreme Weather Preparedness
- Flood Resilience: Elevated equipment, waterproof systems
- Drought Management: Water storage, advanced reuse systems
- Temperature Extremes: Climate-controlled buildings
- Storm Water Integration: Combined treatment systems
Regulatory Framework and Standards
International Guidelines
WHO Guidelines
- Unrestricted Irrigation: <1,000 E. coli per 100mL
- Restricted Irrigation: <10,000 E. coli per 100mL
- Aquaculture: <1,000 E. coli per 100mL
Typical Municipal Discharge Limits
| Parameter | Primary Treatment | Secondary Treatment | Advanced Secondary | Tertiary Treatment |
|---|---|---|---|---|
| BOD₅ (mg/L) | Not specified | 25-30 | 15-20 | 5-10 |
| TSS (mg/L) | Not specified | 30-35 | 15-20 | 5-10 |
| Ammonia-N (mg/L) | Not specified | Not specified | 5-10 | 1-5 |
| Total Phosphorus (mg/L) | Not specified | Not specified | 2-3 | 0.5-1 |
| pH | 6-9 | 6-9 | 6-9 | 6-9 |
| Fecal Coliform (CFU/100mL) | Not specified | 200-1,000 | 200-1,000 | <2.2 |
Conclusion: The Critical Role of Sewage Treatment Plants
Sewage treatment plants are essential infrastructure that protects public health, preserves environmental quality, and supports sustainable development. As we face growing populations, water scarcity, and climate change, these facilities will play an increasingly important role in creating a sustainable future.
The evolution from basic waste disposal to advanced resource recovery represents a fundamental shift in how we view wastewater. Modern STPs are becoming energy-positive facilities that recover valuable resources while producing clean water suitable for various reuses.
Whether you’re a homeowner, business owner, or community leader, understanding sewage treatment plants helps you make informed decisions about water infrastructure investments. The future of clean water depends on continued innovation, proper financing, and commitment to protecting our most precious resource.
By investing in modern sewage treatment technology, we’re not just treating waste – we’re creating a foundation for healthy communities, thriving ecosystems, and sustainable economic growth for generations to come.
