Effluent Treatment Plant(ETP) Explained: How Dirty Water Becomes Clean Water

Dive deep into the world of Effluent Treatment Plants (ETPs). Discovering the full scope of Effluent Treatment Plants (ETP) through my 5 years of practical experience as Environmental Engineer. Learn ETP working principles, stages, chemicals, and waste water purification methods. Here I’m discussed all the information regarding ETP.

Have you ever wondered what happens to all the wastewater from factories and industries? It’s not just harmless water flowing down the drain, is it? Absolutely not! Industrial wastewater, often called “effluent,” can be packed with chemicals, oils, grease, and all sorts of pollutants that can wreak havoc on our environment if not treated properly. Imagine a river where fish struggle to breathe, where the very essence of aquatic life is threatened simply because untreated waste is dumped into it. It’s a sobering thought, isn’t it?

That’s where the Effluent Treatment Plant (ETP) steps in – a crucial facility designed to clean up this industrial wastewater, transforming it into something safe enough to be discharged into nature or even reused. In this article, we’re going to pull back the curtain on these incredible plants. We’ll explore exactly what an ETP is, why it’s an absolute necessity for modern industries, and take a detailed, step-by-step journey through how it works. Get ready to understand the vital role these plants play in safeguarding our planet’s most precious resource: water!

Understanding Effluent Treatment Plant (ETP): More Than Just a Plant!

So, what exactly is an Effluent Treatment Plant (ETP)? Simply put, it’s a facility where industrial wastewater, which we call “effluent,” undergoes a series of processes to become clean water. Think of it like a specialized cleaning crew for dirty factory water. This “dirty water” is essentially what’s left after water has been used in various industrial processes. It’s not just dirty, though; it’s often laden with a variety of harmful impurities like suspended particles, floating debris, organic and inorganic pollutants, and even hazardous chemicals.

The main goal of an ETP is to remove these contaminants, converting the wastewater into a state where it can either be safely discharged back into natural water bodies like rivers, or even reused within the industrial plant itself. Without ETPs, industries would be directly polluting our rivers and lakes, leading to catastrophic consequences for aquatic life and overall environmental health. It’s a critical piece of infrastructure, ensuring that industrial progress doesn’t come at the cost of our planet’s vitality.

Why Do Industries Need an ETP? Protecting Life and Our Planet

This might seem obvious, but let’s dive a little deeper into why Effluent Treatment Plants (ETPs) are not just a good idea, but an absolute necessity for any industry. When industrial processes use water, the resulting “waste” water, or effluent, is far from pure. It’s often loaded with various impurities – everything from chemicals, oils, and grease to suspended solids. Now, imagine what would happen if this untreated, contaminated water was simply released directly into a river or a pond.

The impact would be devastating! The source highlights that aquatic life, like fish, relies on a specific, healthy environment to survive. When pollutants like high Biochemical Oxygen Demand (BOD) or Chemical Oxygen Demand (COD) enter the water, they disrupt this delicate balance, consuming oxygen and making it impossible for marine life to thrive. Fish and other organisms would literally die off, turning vibrant ecosystems into barren wastelands.

Therefore, the primary purpose of an ETP is to prevent this environmental catastrophe. By treating the wastewater before discharge, ETPs ensure that our rivers and other water bodies remain clean and healthy, protecting the aquatic life within them. Beyond environmental protection, treating water also opens up possibilities for water reuse, which is becoming increasingly important in a world facing water scarcity. It’s about responsibility, sustainability, and ensuring a healthy planet for future generations.

Effluent vs. Sewage: Understanding the Difference

Before we deep-dive into the working of an ETP, let’s quickly clarify a common point of confusion: the difference between effluent and sewage. While both are types of wastewater, their origins are distinct.

• Effluent refers specifically to the waste water generated from industrial processes. This could be water used for cooling, cleaning, manufacturing, or any other industrial activity. Because of its industrial origin, effluent often contains specific types of pollutants like heavy metals, industrial chemicals, dyes, or byproducts unique to the industry.
• Sewage, on the other hand, is the waste water that originates from households and commercial establishments. Think of the water that goes down your drains after you take a shower, wash dishes, or flush the toilet. It primarily contains human waste, food scraps, detergents, and other domestic pollutants.

While both require treatment to prevent pollution, the specific contaminants and treatment methods can differ. Today, our focus is squarely on the industrial side of things – the effluent that an ETP tackles.

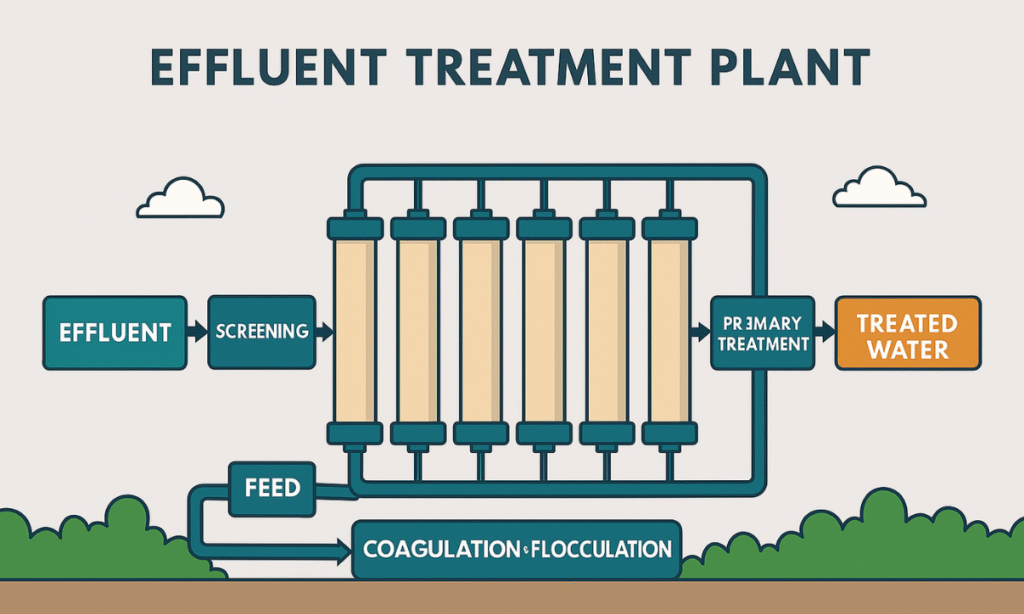

The Grand Tour: Stages of Effluent Treatment

Treating industrial wastewater isn’t a one-step process; it’s a meticulously planned journey through several distinct stages. Each stage is designed to remove specific types of impurities, bringing the water closer to purity. Broadly, we can categorize the treatment into four main phases:

• Preliminary Treatment: This is the first line of defense, tackling the big stuff.
• Primary Treatment: Here, we focus on removing suspended solids through physical and chemical processes.
• Secondary Treatment (Biological Treatment): This stage targets organic contaminants using microscopic helpers.
• Tertiary Treatment: The final polish, ensuring the water is safe for discharge or reuse.

Let’s break down each of these steps in detail, understanding the role of every component and why it’s so vital for clean water.

Preliminary Treatment: The First Line of Defense

Imagine you’re trying to clean a messy room. Would you start by wiping down surfaces, or would you first pick up the big pieces of trash scattered around? You’d tackle the big stuff first, right? That’s exactly what Preliminary Treatment does for industrial wastewater. It’s the initial phase, designed to remove large, easily separable impurities, protecting the downstream equipment from damage and ensuring the subsequent treatment stages work effectively.

This stage typically involves three key components:

Bar Screen: Catching the Biggies

The very first stop for industrial wastewater entering an ETP is the Bar Screen. Think of it as a giant sieve or a barred gate. It’s essentially a set of metal bars or a mesh with a standard opening size, often around 50mm. What’s its job? To catch all the large floating debris that comes with the wastewater – things like plastic bottles, rags, large pieces of wood, stones, or any other bulky materials.

These larger impurities are either mechanically or manually removed from the screen. Why is this so important? Well, these large items could clog pipes, damage pumps, or interfere with the machinery in later treatment stages. By removing them upfront, the bar screen ensures a smoother, more efficient flow through the entire ETP system. It’s simple, yet incredibly effective!

Grit Chamber: Letting the Heavy Stuff Settle

After passing through the bar screen, the wastewater flows into the Grit Chamber. As the name suggests, this chamber is designed to remove “grit,” which includes smaller, denser inorganic solids like sand, gravel, and small pebbles. How does it work?

The grit chamber is designed to slow down the flow of water. When the water’s velocity decreases, the heavier grit particles, due to their higher density, lose their momentum and simply settle down to the bottom of the chamber. These settled grit particles are then collected and disposed of. If left in the water, grit could cause abrasion and wear on pumps and other mechanical equipment downstream, or accumulate in pipes and tanks, reducing their capacity. So, the grit chamber acts as a crucial pre-treatment step, safeguarding the ETP’s machinery.

Oil & Grease Trap: Skimming the Surface

Next up in our preliminary treatment journey is the Oil & Grease Trap. We all know that oil and water don’t mix, and oil is generally lighter than water, right? This principle is exactly what this trap leverages! As the water enters this chamber, it’s allowed to sit and settle. Since oil and grease have a lower density than water, they naturally float to the surface, forming a layer on top.

Once this layer forms, mechanical methods are used to skim or “trap” the oil and grease from the water’s surface. Imagine a giant skimmer slowly moving across the water, collecting the oily film. Removing oil and grease is vital because they can cause significant problems in subsequent treatment stages, such as interfering with biological processes, clogging filters, and even causing fire hazards. This trap ensures that our water is free from these troublesome floating impurities before moving on.

Primary Treatment: Fine-Tuning the Water

With the big, obvious contaminants out of the way, we move into Primary Treatment. This phase focuses on further clarifying the water by dealing with dissolved and suspended solids that weren’t caught in the preliminary stages. It often involves a combination of physical and chemical processes.

Equalization Chamber: Balancing Act for Consistency

Following the preliminary treatment, the wastewater flows into the Equalization Chamber. This might seem like just another tank, but it plays a crucial role in stabilizing the wastewater’s characteristics. Why? Because industrial effluent isn’t uniform; its temperature, pH levels, and contaminant load can vary significantly throughout the day or depending on production cycles. This variability can make subsequent treatment steps highly unpredictable and less effective.

The equalization chamber acts as a buffer and a mixer. Air is continuously supplied to the tank, which keeps the water constantly mixed. This mixing helps to average out the fluctuating characteristics. For example, if there’s a batch of high-temperature water mixed with a batch of low-temperature water, the chamber helps achieve an average, more consistent temperature. Similarly, if the pH fluctuates, mixing helps stabilize it to an average level.

Beyond equalization, this chamber also serves as a storage tank. This is incredibly useful because it ensures a continuous and uniform supply of water to the downstream processes, even if the incoming flow from the industry is intermittent. It’s like having a steady hand that ensures the next steps receive a consistent “product” to work with.

pH Neutralization Tank: Striking the Perfect Balance

From the equalization chamber, the water moves to the pH Neutralization Tank. pH, as we know, is a measure of how acidic or alkaline (basic) a substance is. Industrial wastewater often has a highly variable pH – it could be too acidic or too alkaline. Why is maintaining the right pH so important? Because the effectiveness of many chemical reactions and biological processes in the subsequent treatment stages is highly dependent on a specific pH range, usually around 6.5 to 7.5.

In this tank, the pH of the effluent is adjusted to the desired range. If the water is too acidic (low pH), alkaline chemicals (like caustic soda) are added to increase the pH. Conversely, if the water is too alkaline (high pH), acidic chemicals (like sulfuric acid) are added to lower the pH. Continuous monitoring and chemical dosing ensure that the pH is precisely maintained within the optimal range. This step is critical for ensuring that the subsequent chemical coagulation and biological treatments can perform at their peak efficiency.

Coagulation & Flocculation Tank (Flash Mixer): Clumping the Tiny Bits

Now things get really interesting in the Coagulation & Flocculation Tank, sometimes referred to as a Flash Mixer. Even after preliminary steps, wastewater still contains many tiny suspended particles that are too small and light to settle on their own. These particles often carry a negative electrical charge, causing them to repel each other and stay dispersed in the water.

Here’s where chemistry comes in!

• Coagulation: A chemical coagulant, such as alum (aluminum sulfate), is rapidly added to the water. Alum carries a positive charge. When it’s introduced, these positive charges neutralize the negative charges on the tiny suspended particles. Think of it like magnets: opposite charges attract! Once the charges are neutralized, these particles no longer repel each other and can start to come together. This process is often done with rapid mixing to ensure uniform distribution of the coagulant.
• Flocculation: After coagulation, the water moves into a slower mixing zone. The goal here is to gently mix the water, allowing the newly destabilized particles to collide and stick together. This gentle agitation encourages them to form larger, heavier clumps called “flocs”. The larger the floc, the easier it will be for it to settle down. This process transforms tiny, invisible impurities into visible, settleable masses.

Primary Clarifier / Primary Sedimentation Tank: Settling the Sludge

Following the coagulation and flocculation, the water, now containing those beautiful, heavy flocs, flows into the Primary Clarifier, also known as the Primary Sedimentation Tank. This is a large, often circular, tank where the water is allowed to sit undisturbed.

The principle here is simple: gravity! Because the flocs are now larger and denser thanks to coagulation and flocculation, they slowly sink to the bottom of the tank. This settled material is called primary sludge. This sludge, which is rich in removed impurities, is then continuously scraped from the bottom and pumped to Sludge Drying Beds (SD) for dewatering and disposal.

The water that flows out from the top of the primary clarifier is significantly clearer, with a large percentage of suspended solids removed. This marks the end of the primary treatment phase, setting the stage for the next, even more advanced, cleaning process.

Secondary Treatment: The Biological Revolution

Now that the larger suspended solids have been removed, it’s time to tackle the tricky stuff: organic contaminants. Secondary Treatment is primarily a biological treatment process. This stage relies on the incredible power of microorganisms, like bacteria, to literally eat and break down the organic matter present in the wastewater. Imagine millions of tiny, hungry workers gobbling up the pollutants!

Biological treatment typically comes in two main flavors:

• Aerobic Treatment: This happens in the presence of oxygen.
• Anaerobic Treatment: This occurs in the absence of oxygen.

The choice between aerobic, anaerobic, or a combination depends on the characteristics of the effluent, particularly its Biochemical Oxygen Demand (BOD) level. For most ETPs, aerobic treatment is more commonly seen. Let’s explore the key component of this stage.

Aeration Tank: Where Microbes Get to Work

The water from the primary clarifier now enters the Aeration Tank. This is where the magic of aerobic biological treatment happens! In this tank, a carefully cultivated population of aerobic bacteria (bacteria that need oxygen to survive and thrive) is introduced to the water.

Here’s how it works:

• Oxygen Supply: To keep these beneficial bacteria happy and active, a continuous supply of air (oxygen) is provided, typically through an air compressor. Air is bubbled up from the bottom of the tank, ensuring the entire tank is oxygenated and well-mixed.
• Feasting Microbes: The organic matter dissolved in the wastewater acts as “food” for these aerobic bacteria. As they consume the organic compounds, they break them down into simpler, less harmful substances like carbon dioxide and water. This process significantly reduces the Biochemical Oxygen Demand (BOD) of the water. Remember, high BOD means more organic pollution, which consumes oxygen in natural water bodies and harms aquatic life.
• Bacterial Growth: As the bacteria feast on the organic pollutants, they also multiply rapidly, increasing their population within the tank. This increased bacterial biomass forms flocs, similar to those formed in primary treatment, but composed of biological material.

The aeration tank is a bustling ecosystem where millions of microbes tirelessly work to clean the water, transforming complex organic pollutants into simple, harmless compounds.

Secondary Clarifier / Secondary Sedimentation Tank: Separating the Clean Water

After the aeration tank, the water (now teeming with bacteria and significantly reduced organic load) flows into the Secondary Clarifier, also known as the Secondary Sedimentation Tank. This tank functions much like the primary clarifier: it’s a large, quiescent (still) tank where gravity does its work.

The flocs of bacteria, along with any remaining suspended solids, settle to the bottom of the tank, forming secondary sludge. This sludge is primarily composed of the active bacterial biomass.

What happens to this secondary sludge?

• Sludge Return: A significant portion (around 10-15%) of this settled sludge, which contains active, healthy bacteria, is pumped back to the aeration tank. This is called Return Activated Sludge (RAS), and it’s crucial for maintaining a high concentration of active microbes in the aeration tank, ensuring continuous and efficient biological treatment.
• Excess Sludge Disposal: The remaining excess sludge, often called Waste Activated Sludge (WAS), is no longer needed for the treatment process. This excess sludge is sent to Sludge Drying Beds (SD) for dewatering and eventual disposal.

The water flowing out from the top of the secondary clarifier is now much clearer, with most of the organic matter and suspended solids removed. We’re almost there!

Tertiary Treatment: The Final Polish

You might think we’re done, but for truly clean water, especially if it’s going back into sensitive ecosystems or being reused, we need a final polishing step: Tertiary Treatment. This stage focuses on removing any remaining trace contaminants, pathogens (disease-causing microorganisms), and ensuring the water quality meets strict discharge or reuse standards.

Chlorination: Disinfection for Safety

One of the most common methods in tertiary treatment, particularly for disinfection, is Chlorination. After all the previous stages, while most pollutants are gone, there might still be some residual bacteria or pathogens present in the water.

Chlorine (or chlorine compounds) is added to the treated water. Chlorine is a powerful oxidizing agent that effectively kills or inactivates most bacteria, viruses, and other microorganisms by disrupting their cellular structure. This step ensures that the water is safe from a public health perspective before it’s discharged or reused. The source highlights that detailed information on chlorination is available if needed.

Advanced Polishing Options: Beyond Basic Treatment

While chlorination often marks the end of treatment for discharge, if the treated water is intended for reuse within the industrial plant or for very sensitive applications, further advanced polishing steps might be employed. These can include:

• Multi-Media Filters (MMF): These filters contain layers of different media (like sand, gravel, anthracite) that physically trap even finer suspended particles that might have escaped previous stages.
• Activated Carbon Filters (ACF): Activated carbon is excellent at adsorbing (sticking to its surface) dissolved organic compounds, colors, odors, and some chemicals that are not removed by biological treatment.
• De-mineralization (DM) Plants: For high-purity applications, like boiler feedwater or process water, DM plants are used. These can involve technologies like:
  • Strong Acid Cation (SAC) and Strong Base Anion (SBA) Exchangers (often called “SSC” and “Gladwell” in the source’s context of DM plants): These resins remove dissolved mineral salts (ions) from the water.
  • Mixed Bed (MB) Exchangers: These combine SAC and SBA resins in a single vessel to achieve even higher purity water.

These advanced steps ensure that the water quality meets specific requirements, allowing for sustainable water management and reduced reliance on fresh water sources.

Sludge Management: What Happens to the Byproduct?

Throughout the ETP process, especially in the primary and secondary clarifiers, a significant byproduct is generated: sludge. Sludge is a concentrated mixture of the impurities removed from the wastewater, along with the biomass from biological treatment. It’s too concentrated to be simply discharged and needs further processing.

Both the primary sludge (from the primary clarifier) and the excess secondary sludge (from the secondary clarifier) are typically sent to Sludge Drying Beds (SD).

• Sludge Drying Beds: These are simple, open-air beds with a permeable bottom (often sand and gravel layers) that allow water to drain away. The sludge is spread out on these beds, and the water evaporates due to sunlight and air, while the remaining liquid drains through the filter media. This process reduces the volume of the sludge, making it easier and safer to handle and dispose of. Once dried, the sludge can be disposed of in landfills, or in some cases, used as soil conditioner or for energy recovery, depending on its composition and local regulations.

Proper sludge management is a crucial part of ETP operations, ensuring that even the byproducts of the cleaning process are handled responsibly.

The Role of BOD and COD in ETP

The source frequently mentions BOD (Biochemical Oxygen Demand) and COD (Chemical Oxygen Demand). These aren’t just technical terms; they are critical indicators that tell us how much organic pollution is in the water and, consequently, how effectively the ETP is performing.

• BOD (Biological Oxygen Demand): This measures the amount of dissolved oxygen consumed by microorganisms (like the bacteria in the aeration tank) while they break down organic matter in a water sample over a specific period (usually 5 days). A high BOD indicates a high level of organic pollution, which can deplete oxygen in natural water bodies and harm aquatic life. ETPs aim to drastically reduce BOD, especially in the secondary (biological) treatment stage.
• COD (Chemical Oxygen Demand): This measures the amount of oxygen required to chemically oxidize all organic and inorganic compounds in a water sample. While BOD measures biodegradable organic matter, COD measures virtually all oxidizable matter. COD is often higher than BOD because it includes non-biodegradable substances.

Monitoring BOD and COD levels at various stages of the ETP helps operators assess the efficiency of each treatment step and ensure that the final treated water meets the required discharge standards. If the effluent has a very high BOD, sometimes both anaerobic and aerobic treatments are necessary to achieve the desired reduction.

The Importance of Maintenance and Monitoring

An Effluent Treatment Plant (ETP) isn’t a “set it and forget it” system. Far from it! For an ETP to function effectively and consistently, regular maintenance and continuous monitoring are absolutely critical. Think of it like a complex machine: if you don’t maintain it, it won’t perform optimally, or worse, it might break down.

Operators must regularly check the condition of mechanical components like pumps, screens, and mixers. Chemical dosing systems need calibration to ensure the correct amount of coagulants or pH adjusters are being added. And perhaps most importantly, the biological processes need constant attention. This means monitoring the health and concentration of bacteria in the aeration tank, checking dissolved oxygen levels, and ensuring that the organic load is consistent.

Regular lab tests for parameters like pH, BOD, COD, and suspended solids at different stages of the treatment process provide invaluable data on the plant’s performance. If any parameter is off, adjustments can be made promptly. This proactive approach ensures that the ETP continuously meets discharge norms, protecting the environment and avoiding costly penalties. It’s a continuous cycle of operation, observation, and optimization.

Benefits Beyond Compliance: Why ETPs are a Smart Investment

While the primary driver for installing an ETP is often regulatory compliance and environmental protection, the benefits extend much further. Investing in an Effluent Treatment Plant is not just an expense; it’s a smart strategic decision for any responsible industry.

• Environmental Stewardship: This is the most obvious benefit. ETPs directly prevent water pollution, protecting aquatic ecosystems, wildlife, and human health. Being environmentally responsible enhances a company’s reputation and brand image, which can be a significant asset in today’s conscious consumer market.
• Water Conservation and Reuse: With increasing global water scarcity, the ability to treat and reuse water is invaluable. Treated effluent can often be recycled back into industrial processes for cooling, cleaning, or even irrigation, significantly reducing reliance on fresh water sources and lowering operational costs.
• Cost Savings: While there’s an initial investment, water reuse can lead to substantial long-term savings on water procurement costs and discharge fees. Reduced pollution also means avoiding hefty fines and legal battles that can arise from non-compliance.
• Enhanced Public Image and Social License to Operate: Companies that demonstrate a commitment to environmental protection gain public trust and acceptance, which is crucial for their “social license to operate” – the ongoing acceptance of a company’s business practices and operating procedures by its employees, stakeholders, and the public.
• Resource Recovery: In some advanced ETPs, it’s possible to recover valuable resources from wastewater, such as nutrients or even energy from sludge.

Ultimately, ETPs are about more than just cleaning water; they are about fostering sustainable industrial practices, safeguarding our natural resources, and building a more responsible future.

Conclusion: The Unsung Heroes of Industrial Sustainability

As we’ve journeyed through the intricate workings of an Effluent Treatment Plant (ETP), it becomes abundantly clear that these facilities are far more than just a collection of tanks and pipes. They are sophisticated systems, the silent guardians, working tirelessly behind the scenes to protect our most vital resource: water. From the initial screening of large debris to the meticulous biological breakdown of organic matter and the final disinfection, each step plays a crucial role in transforming contaminated industrial wastewater into a clean, reusable resource.

Without ETP, our rivers, lakes, and oceans would suffer immense damage, threatening aquatic life and impacting human health. These plants enable industries to operate responsibly, balancing economic growth with environmental preservation. By investing in and properly maintaining ETPs, industries don’t just comply with regulations; they become true stewards of the environment, contributing to a sustainable future where both progress and nature can thrive. So, the next time you see clean water flowing, remember the unsung heroes—the Effluent Treatment Plants—working diligently to make it possible!
